Industrial Pilot Operated Diaphragm Type Solenoid Valve Industrial Pilot Operated Diaphragm Type Solenoid Valve Industrial Pilot Operated Diaphragm Type Solenoid Valve

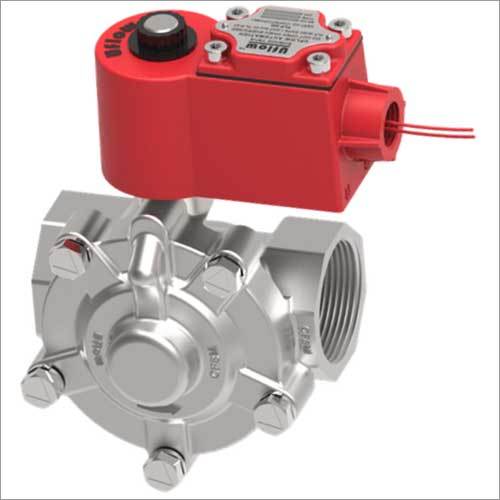

Industrial Pilot Operated Diaphragm Type Solenoid Valve
Industrial Pilot Operated Diaphragm Type Solenoid Valve Industrial Pilot Operated Diaphragm Type Solenoid Valve

Industrial Pilot Operated Diaphragm Type Solenoid Valve

5000 - 50000 INR/Piece

Product Details:

  • Product Type Pilot Operated Diaphragm Valve (NC / NO)
  • Weight 1.5 Kilograms (kg)
  • Size 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
  • Color Silver
  • Material Stainless Steel
  • Valve Structure Diaphragm Valve
  • Way Type Single
  • Supply Ability : 1000 Piece Per Week
  • Click to view more
X

Price And Quantity

  • 1000 Piece
  • 5000.00 - 50000.00 INR/Piece
  • 5000 - 50000 INR/Piece

Product Specifications

  • Water
  • Standard
  • All Application
  • 1.5 Kilograms (kg)
  • Pilot Operated Diaphragm Valve (NC / NO)
  • Silver
  • 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
  • 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
  • Diaphragm Valve
  • Medium Pressure
  • Medium.
  • -10 to 70 Celsius (oC)
  • Stainless Steel
  • Single

Trade Information

  • Mumbai
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cheque
  • 1000 Piece Per Week
  • 1 Week
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Our firm is counted a reliable firm in presenting a wide array of Industrial Pilot Operated Diaphragm Type Solenoid Valve. It is fabricated with a superior grade of raw materials which are obtained from a certified vendors of the market. Therefore, provided valve is easy to assembled and separate. It is used in chemical and engineering industries. It is easy to control the flow of liquid as well as gas.

Pilot Operated Diaphragm Valve (NC / NO)

valve:

Port:

Refer below technical data sheet (Available BSP / NPT)

End Connection:

Screwed / Flange

Body Material:

SS ASTM A351 Grade CF8 / CF8M

Media Temp & seal o ring:

Nitrile (NBR)

EPDM

Viton (FKM)

-30 C to 90 C

-10 C to 140 C

-10 C to 180 C

Circumstance Temp:

-10 C to 70 C

Media:

Air, Water, Chemical, Gas

Main Features:

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment

Operating Voltage & Power Consumption:

24AC

110AC

230AC

12DC

24DC

7W

8W

8W

10W

11W

Optional Feature:

90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.

Other Specification Data:

Available on Request - High-Pressure 20Kg Series.

 Coil:

Coil Features:

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as require.

Note:

Use of filter in the inlet port is recommended.


Technical Data

Model No.

Body Material

Pipe (Inch)

Orifice (mm)

Min. Operating Pressure Kg/cm

Max. Operating Pressure Kg/cm

Seal & Diaphragm Material

Flow Factor Kv m / hr

PCN28

CF8 / CF8M

1/2 Inch

17

0.5

12

NBR / EPDM / VITON

03.20

PCN38

CF8 / CF8M

3/4 Inch

20

0.5

12

NBR / EPDM / VITON

5

PCN48

CF8 / CF8M

1 Inch

25

0.5

12

NBR / EPDM / VITON

8.20

PCN58

CF8 / CF8M

1-1/4 Inch

36

0.5

12

NBR / EPDM / VITON

12.20

PCN68

CF8 / CF8M

1-1/2 Inch

36

0.5

12

NBR / EPDM / VITON

17.10

PCN88

CF8 / CF8M

2 Inch

48

0.5

12

NBR / EPDM / VITON

29.90

PCN98

CF8 / CF8M

2-1/2 Inch

60

0.5

12

NBR / EPDM / VITON

43.50

PCNA8

CF8 / CF8M

3 Inch

72

0.5

12

NBR / EPDM / VITON

64.50
