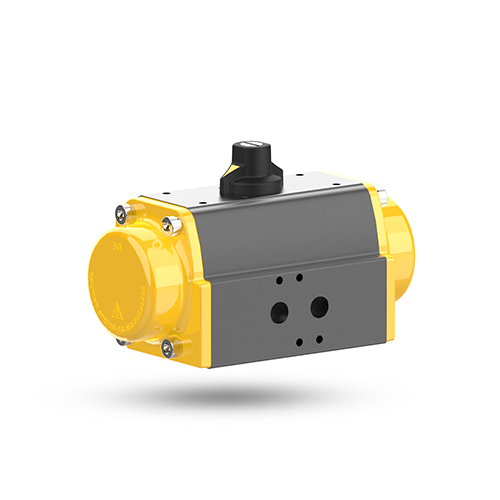

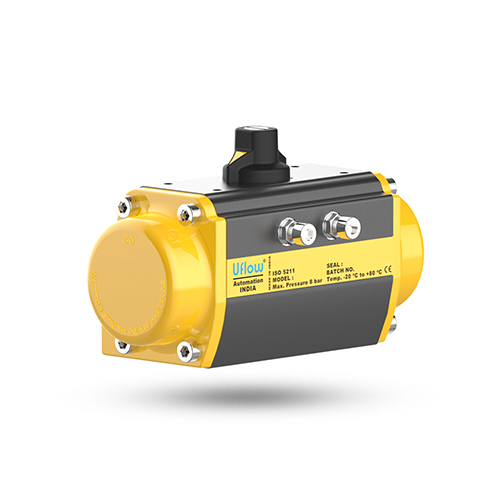

AD80 Double Acting Pneumatic Actuator

7000 INR/Piece

Get a Price/Quote

Product Details:

Color black ,yellow
Weight 4 Kilograms (kg)
Product Type actuator
Size 80MM
Media AIR
Material Aluminum
Air Consumption As Per Application
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

AD80 Double Acting Pneumatic Actuator Price And Quantity

Minimum Order Quantity 100 Piece
Price Range 7000.00 - 8000.00 INR/Piece
Price 7000 INR/Piece

AD80 Double Acting Pneumatic Actuator Product Specifications

Material Aluminum
Media AIR
Air Consumption As Per Application
Size 80MM
Weight 4 Kilograms (kg)
Product Type actuator
Color black ,yellow

AD80 Double Acting Pneumatic Actuator Trade Information

FOB Port RAJKOT
Payment Terms Cheque Letter of Credit (L/C) Cash in Advance (CID) Telegraphic Transfer (T/T) Cash Advance (CA) Letter of Credit at Sight (Sight L/C)
Supply Ability 500 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Central America Australia Eastern Europe Africa Asia North America South America Western Europe Middle East
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Features:

Uflow has successfully developed Compact, Patented Aluminium Free Rack & Pinion Pneumatic Rotary Actuator, Consuming Low Volume of Air.
Wear proof aluminium free Rack & Pinion design.
Low air consumption with maximum torque due to the compact design.
Providing a hard-anodized body for high corrosion resistance.
Smooth travelling stroke for extending the life of ball valve sheet.
Finer teeth module for smoother operation, and jerk-free sliding.
Maintenance-free design.
Aluminium Extruded, Hard Anodized Body.

Torque Chart (Double Acting):

Model No.	Diagram No.	2 Bar	3 Bar	4 Bar	5 Bar	6 Bar	7 Bar	8 Bar
AD32	4.1	3	4.60	6	7.60	9	10.50	12
AD50	4.1	10.80	16	21.50	27	32.50	38	43
AD63	4.1	20	30	40	50	60	70	80
AD80	4.1	34.50	51.50	69	86.50	103	120.50	138
AD100	4.1	73	110	146	183	220	256	293
AD125	4.1	127	190	254	317.50	381	444.50	508
AD150	4.1	210	316	421	526	631	737	842
