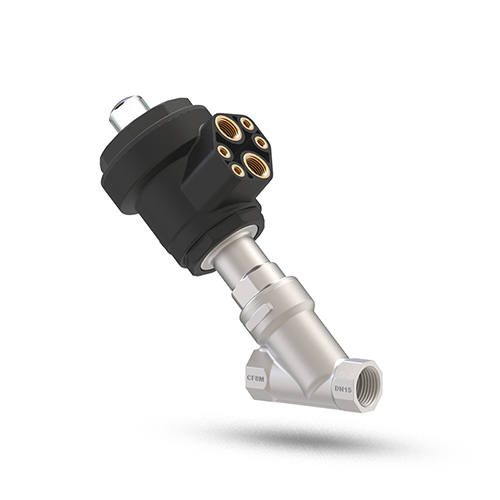

Pneumatically Controlled Y Type Valve With Plastic Actuator (Angle Seated)

Pneumatically Controlled Y Type Valve With Plastic Actuator (Angle Seated)

3000 INR/Piece

Get a Price/Quote

Product Details:

Application Steam, Hot water, Chemical, Powder etc.
Color SILVER & BLACK
Weight 2 Kilograms (kg)
Sealing PTFE
Product Type angle seat valve
Structure Angle
Power Pneumatic
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pneumatically Controlled Y Type Valve With Plastic Actuator (Angle Seated) Price And Quantity

Minimum Order Quantity 100 Piece
Price 3000 INR/Piece
Price Range 3000.00 - 4000.00 INR/Piece

Pneumatically Controlled Y Type Valve With Plastic Actuator (Angle Seated) Product Specifications

Product Type angle seat valve
Sealing PTFE
Weight 2 Kilograms (kg)
Power Pneumatic
Color SILVER & BLACK
Structure Angle
Port Size 1"
Media Water Oil
Temperature 10C to 70C Celsius (oC)
Application Steam, Hot water, Chemical, Powder etc.

Pneumatically Controlled Y Type Valve With Plastic Actuator (Angle Seated) Trade Information

FOB Port RAJKOT
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T) Letter of Credit (L/C)
Supply Ability 500 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Australia Central America North America South America Asia Eastern Europe Western Europe Africa Middle East
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Angle Seat Valve with Plastic Operator (NC/NO/Bi-Directional) Specifications

valve:

Port:	Refer below technical data sheet (Available BSP / NPT)
End Connection:	Screwed / Flange / Tri-Clamp
Body Material:	SS ASTM A351 Grade CF8 / CF8M
Seal:	TEFLON / PEEK / VITON / EPDM
Circumstance Temp:	-10 C to 70 C
Media Temp:	-10 C to 180 C
Shaft:	SS304 / SS316

Coil:

Cover:	Nylon Glass-Filled (Corrosion resistive) with SS Liner
Plate:	NBR / VITON
Working Pressure:	3.5 to 8 bar (Air)
Life:	Three Million Cycle Tested
Other Technical Data:	Available on Request - High Pressure 25Kg series

Features

Convertible from single Acting to Double Acting.
Multiple Function with the same operator - NC / NO / Bi-Directional.
Flow direction below or above the seat.
Also available in non-Namur connection operator.
Transparent dome for visual valve open indication.
Lubricated air is not essential.
Rotatable Operator - 360
Media : Steam, Air, Water, Chemical, Gases, Oil, Diesel, Hot Water.
Namur connection for easy to install Pilot Solenoid Valve (Optional).
Application: Steam, Autoclave and Sterilizer, Ink and Paint dispensing, Industrial compressor bottling and dispensing equipment, textile dying and drying and pharmaceutical.

Technical Data

Model No.	Body Material	Pipe (Inch)	Orifice (mm)	Min. Operating Pressure Kg/cm	Max. Operating Pressure Kg/cm	Seal & Ring Material	Flow Factor Kv m / hr
ACP255	CF8 / CF8M	1/2 Inch	14.50	0	16	PTFE / PEEK / VITON	6
ACP355	CF8 / CF8M	3/4 Inch	20	0	16	PTFE / PEEK / VITON	10.9
ACP456	CF8 / CF8M	1 Inch	25	0	16	PTFE / PEEK / VITON	21
ACP556	CF8 / CF8M	1-1/4 Inch	40	0	16	PTFE / PEEK / VITON	35
ACP656	CF8 / CF8M	1-1/2 Inch	40	0	16	PTFE / PEEK / VITON	49
ACP858	CF8 / CF8M	2 Inch	50	0	16	PTFE / PEEK / VITON	68
