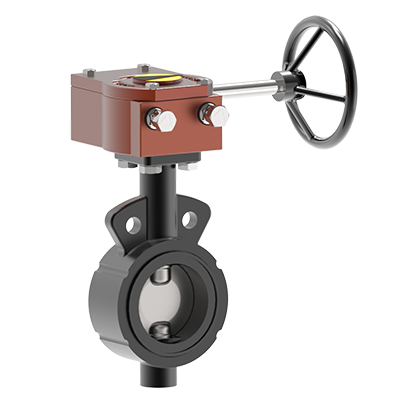

Gear Operated Butterfly Valve

2000 - 25000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Butterfly Valve
Color Silver, Black
Connection Socket
Size 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Valve Type Wafer Type Butterfly Valve
Material Stainless Steel
Power Source Manual
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Gear Operated Butterfly Valve Price And Quantity

Minimum Order Quantity 1000 Piece
Price 2000 - 25000 INR/Piece

Gear Operated Butterfly Valve Product Specifications

Media Water
Color Silver, Black
Port Size 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Pressure Medium Pressure
Size 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Power Source Manual
Material Stainless Steel
Working Temperature Medium
Connection Socket
Valve Type Wafer Type Butterfly Valve
Product Type Butterfly Valve

Gear Operated Butterfly Valve Trade Information

FOB Port Mumbai
Supply Ability 1000 Piece Per Month
Delivery Time 3 Week
Main Export Market(s) Asia Western Europe Australia North America South America Eastern Europe Middle East Central America Africa
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

We are distinguished in providing an exclusive range of Gear Operated Butterfly Valve. It is manufactured under the strict observation of talented team members who know better about this gamut. This valve is designed in accordance to meet the overseas norms and polices. It is made with best grade of factor inputs as to improve the quality and performance of required product. It is mainly useful in chemical industries. It can be availed in many sizes and modifications.

Gear Operated Butterfly Valve Specifications

valve:

End Connection:	Wafer - API 609 (CAT - A)
Range:	DN40 - DN300
Suitable to:	ASMI B16.5 150#, BS10 TABLE : E, F, H
Pressure Range:	PN10, PN16
Leakage Class:	100% Tightness at fully differential pressure
Standard:	API 609, BS 5155, ISO 5211, API 598, ASME B16.5
Body Material:	Cast Iron, WCB, SS304, SS316
Disc Material:	SGI, CF8, CF8M
Stem Material:	SS 410, SS 304, SS 316
Body Liner / Seat Material:	NBR, EPDM

Features

Bi-directional zero leakage butterfly valve.
ISO Pad for mounting, Gear Operator /Actuator
Extremely small play between the stem and disc due to ‹“Double D drive.
Accurate dual stem sealing prevents leakage.
Butterfly valve can be mounted between flanges as per ASME, BS-10.
100% tested under Water and Pneumatic.
360 disc rotation.
Design Standard : ISO 5211, API 609, ASME B16.5 150#.
Nominal Diameter : DN40 -DN300.
Pressure Rang (bar) : PN10, PN16.
ANSI B16.5 150#, BS10 TABLE E, TABLE F, TABLE H, Flange Accommodation.
Face to Face Dimension : API 609 (CAT A).
Operator mounting flange : As per ISO 5211.
Operator : Hand Lever / Gear / Actuator.
End connection : wafer end.
Leakage Class : 100% tightness at full differential Pressure.
