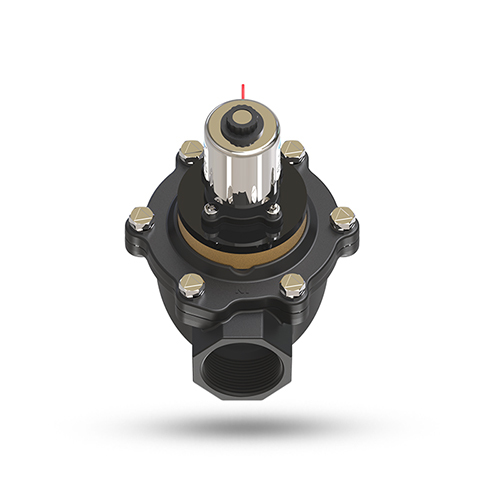

Pulse Jet Angle Type Dust Collector Valve

Pulse Jet Angle Type Dust Collector Valve

2000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Pulse Jet Angle Type Dust Collector Valve
Color BLACK
Weight 1 Kilograms (kg)
Size 1"
Sealing NBR
Structure Diaphragm
Application ALL APPLICATION
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pulse Jet Angle Type Dust Collector Valve Price And Quantity

Price Range 2000.00 - 3500.00 INR/Piece
Price 2000 INR/Piece
Minimum Order Quantity 150 Piece

Pulse Jet Angle Type Dust Collector Valve Product Specifications

Sealing NBR
Product Type Pulse Jet Angle Type Dust Collector Valve
Pressure Medium Pressure
Color BLACK
Port Size 1"
Power Solenoid
Application ALL APPLICATION
Media Other
Size 1"
Structure Diaphragm
Weight 1 Kilograms (kg)

Pulse Jet Angle Type Dust Collector Valve Trade Information

FOB Port RAJKOT
Payment Terms Cash in Advance (CID) Cheque Letter of Credit at Sight (Sight L/C) Letter of Credit (L/C) Cash Advance (CA)
Supply Ability 1000 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Asia South America Eastern Europe Western Europe Middle East Central America Australia North America Africa
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Pulse Jet Angle Type Dust Collector Valve Normally Close is featured for its smooth performance, reliability and less maintenance in nature. This gamut is equipped with premium quality of aluminium materials to prevent from rust and corrosion barrier. It is used to remote the operation with instant on & off option. It is dust free and moisture proof. It has a lockable coil system to move free in a safer manner.

Port:

Refer below technical data sheet (Available BSP, NPT & Dresser Nut)

End Connection:

Screwed

Body Material:

Aluminum Die Cast

Media Temp:

-10 C to 90 C

Diaphragm:

Nitrile (NBR)

Circumstance Temp:

-10 C to 70 C

Media:

Air

Main Features:

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Air Pollution Control System, Bag Filter Machine

Operating Voltage & Power Consumption:

24AC	110AC	230AC	12DC	24DC
7W	8W	8W	10W	11W

Optional Feature:

90% Power saver series also available

Other Specification Data:

Available on Request - Brass silencer to reduce extra noise

Pulse Jet Angle Type Dust Collector Valve

Coil:

Coil Features:	High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Coil Housing:	Epoxy square coil, metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure.
Note:	Use of filter in the inlet port is recommended.

Technical Data

Model No.	Body Material	Pipe (Inch)	Orifice (mm)	Min. Operating Pressure Kg/cm	Max. Operating Pressure Kg/cm	Seal & Diaphragm Material	Flow Factor Kv m / hr
JAN47	Aluminum	1 Inch	28.50	0.5	8.5	NBR	16
JAN67	Aluminum	1-1/2 Inch	51	0.5	8.5	NBR	40
