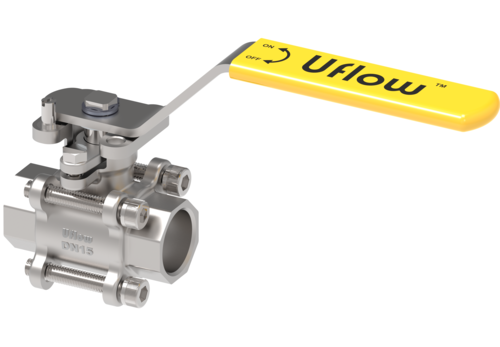

3 Piece Screw End and Socket Weld Handel Type Ball Valve

3 Piece Screw End and  Socket Weld Handel Type Ball Valve

Product Details:

  • Usage Water, Induasterial Ball Valve
  • Structure Ball
  • Size 1/2", 3/4", 1", 1-1/2", 2", 2-1/2",3", 4",
  • Connection Screw End and Socket Weld
  • Pressure Medium Pressure
  • Product Type Handel Type Ball Valve
  • Weight 1 Kilograms (kg)
  • Supply Ability : 1000 Piece Per Week
3500 - 25000 INR/Piece
X

Price And Quantity

  • 3500.00 - 25000.00 INR/Piece
  • 3500 - 25000 INR/Piece
  • 1000 Piece

Product Specifications

  • Water, Induasterial Ball Valve
  • 1/2", 3/4", 1", 1-1/2", 2", 2-1/2",3", 4"
  • Ball
  • Up To 150 C Celsius (oC)
  • Screw End and Socket Weld
  • Medium Pressure
  • Screw End and Socket Weld
  • All Application
  • 1/2", 3/4", 1", 1-1/2", 2", 2-1/2",3", 4"
  • Stainless Steel
  • Handel Type Ball Valve
  • Water
  • Silver, Black
  • 1 Kilograms (kg)

Trade Information

  • Mumbai
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cheque
  • 1000 Piece Per Week
  • 1 Week
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Screwed / Socket Weld Ball Valve

valve:

End Connection: Screwed end, Socket Weld
Face to Face: MFG. Standard
Pressure Class: 150 Class
Design Standard: ASME B16.11, ASME B16.34, API 598, BS EN ISO 17292, ISO 5211
Body Material: CF8 / CF8M / WCB / CF3M
Ball Material: CF8 / CF8M
Body Seal Material: PTFE / RPTFE / CFT / GFT / PEEK
Seat Ring Material: PTFE / RPTFE / CFT / GFT / PEEK
Fastner Material: SS304 / SS316
Stem Seal Material: PTFE / RPTFE / CFT / GFT / PEEK
Stem Material: SS304 / SS316 / SS410
Gland Bush Material: SS304 / SS316 / SS410
Gland Material: SS304 / SS316 / SS410
Size: DN15 - DN80
Pipe End Material: CF8 / CF8M / WCB / CF3M
Features
  • 3PC design twinseal ball valve.
  • Full port ball valve.
  • Blow out proof stem.
  • Floating ball design.
  • Hand lever / Gear / Actuator operated.
  • Face to Face:- MFG Standard.
  • Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque.
  • End Connection:- Screwed / Socket weld (ASME B16.11).
  • ISO 5211 top mounting pad available for easy Uflow make actuator mounting.
