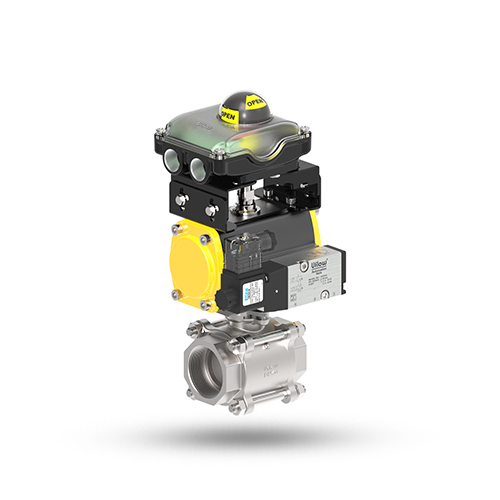

3 Piece Design Ball Valve (ISO Pad)

1500 INR/Piece

Get a Price/Quote

Product Details:

Product Type 3 PIECE BALL VALVE (ISO PAD )
Pressure Other
Connection FLANGE END , SCREWED END SOCKET WELD
Size 1/2" TO 4"
Weight 1.00 Kilograms (kg)
Structure Ball
Color SILVER & BLACK
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3 Piece Design Ball Valve (ISO Pad) Price And Quantity

Minimum Order Quantity 100 Piece
Price 1500 INR/Piece
Price Range 1500.00 - 2000.00 INR/Piece

3 Piece Design Ball Valve (ISO Pad) Product Specifications

Structure Ball
Media Water
Material Stainless Steel
Color SILVER & BLACK
Port Size 1/2" TO 4"
Application WATER
Temperature of Media 180 Celsius (oC)
Product Type 3 PIECE BALL VALVE (ISO PAD )
Weight 1.00 Kilograms (kg)
Size 1/2" TO 4"
Connection FLANGE END , SCREWED END SOCKET WELD
Pressure Other

3 Piece Design Ball Valve (ISO Pad) Trade Information

FOB Port RAJKOT
Payment Terms Cash Advance (CA) Telegraphic Transfer (T/T) Letter of Credit (L/C) Cheque Cash in Advance (CID) Letter of Credit at Sight (Sight L/C)
Supply Ability 100 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Asia Australia North America Western Europe Africa South America Eastern Europe Central America Middle East
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Screwed / Socket Weld Ball Valve Specifications:

valve:

End Connection:	Screwed end, Socket Weld
Face to Face:	MFG. Standard
Pressure Class:	150#
Design Standard:	ASME B16.11, ASME B16.34, API 598, BS EN ISO 17292, ISO 5211
Body Material:	CF8 / CF8M / WCB / CF3M
Ball Material:	CF8 / CF8M
Body Seal Material:	PTFE / RPTFE / CFT / GFT / PEEK
Seat Ring Material:	PTFE / RPTFE / CFT / GFT / PEEK
Fastner Material:	SS304 / SS316
Stem Seal Material:	PTFE / RPTFE / CFT / GFT / PEEK
Stem Material:	SS304 / SS316 / SS410
Gland Bush Material:	SS304 / SS316 / SS410
Gland Material:	SS304 / SS316 / SS410
Size:	DN15 - DN80
Pipe End Material:	CF8 / CF8M / WCB / CF3M

Features

3PC design twin seal ball valve.
Full port ball valve.
Blow out proof stem.
Floating ball design.
Hand lever / Gear / Actuator operated.
Face to Face:- MFG Standard.
Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque.
End Connection:- Screwed / Socket weld (ASME B16.11).
ISO 5211 top mounting pad available for easy Uflow make actuator mounting.
